TCC150-管链机

http://ecodata.cloud/web/image/product.template/58/image_1920?unique=e0437dc

技术参数：
壳体材质304（默认喷砂）（可联系客服选配镜面304）
链条材质304
PTFE盘片
SKF轴承座

$ 19,000.00 19000.0 USD $ 19,000.00 含税

$ 19,000.00 含税

不可用于销售

  • TCC150-管链机输送量(m3/h)
  • TCC管链机链条总长（mm）
  • TCC150管链安装方式

此组合不存在。

联系我们

条款和条件
30天退款保证
运输：2-3 个工作日


Basic Info.

Model NO.

TCC150

Condition

New

Voltage

220V~600V

Overall Dimensions

Customized

Disc Materials

Various Materials Available

Conveying Method

Mechanical  Conveying

Transport Package

Non-Fumigated Wooden Box

Specification

TCC150

Trademark

50000 Pieces/Year

Origin

China


Product Description

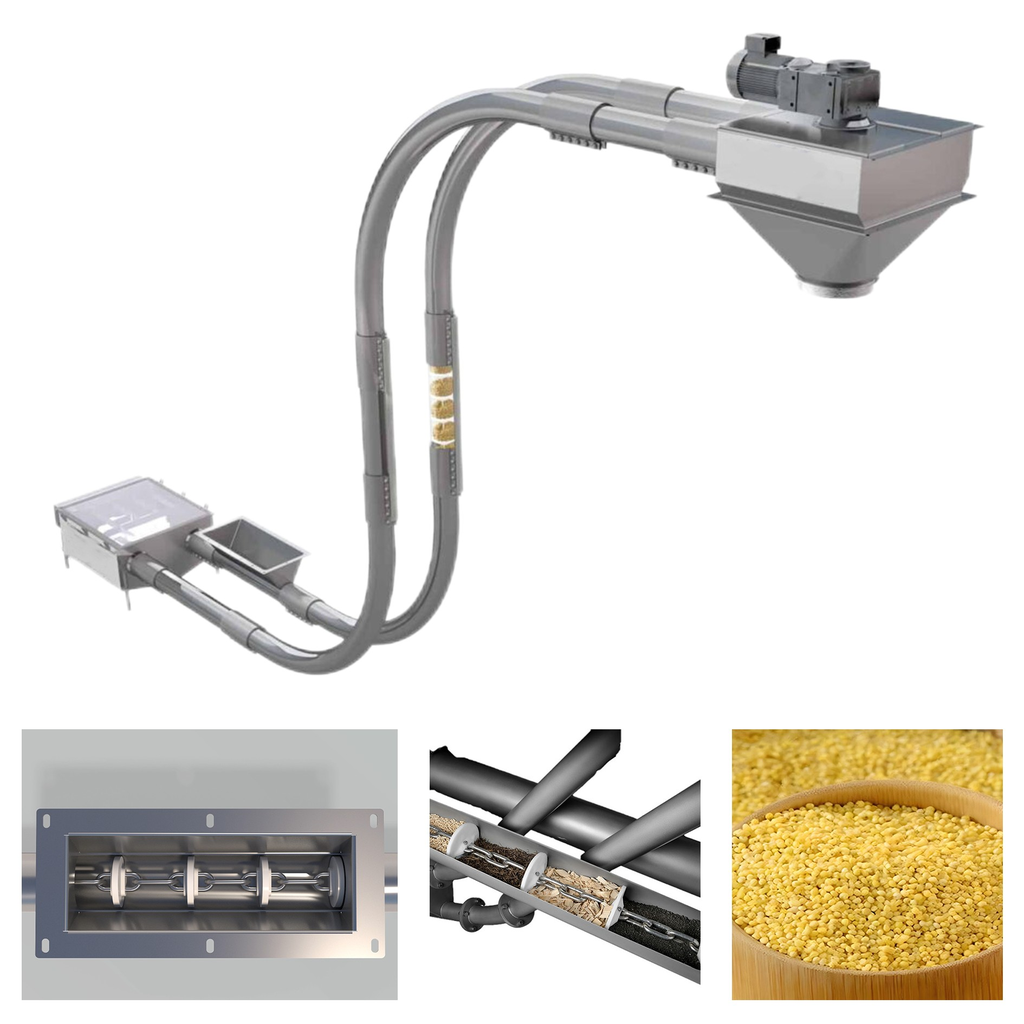

The Tubular Chain Conveyor. The Customizable Stainless Steel Tube Conveyor with SS304 Chain for Bulk Material Handling is a groundbreaking continuous conveying system meticulously engineered for the flawless transportation of granular, small particle, and small block materials. This system boasts superior efficiency in horizontal, inclined, and vertical motion. Using chains as universal joints for dynamic directional shifts, it offers unparalleled layout flexibility. Ideally suited for a multitude of industries, including fine chemicals, pesticides, ores, construction materials, and the food sector, this conveyor system sets new standards in versatility and performance.

Product Features

  1. Enclosed and Environmentally Friendly: The completely enclosed design ensures zero dust or odor leakage. By eliminating metal friction, it significantly reduces noise pollution, ensuring a cleaner and quieter working environment.
  2. Safe and Reliable: With inert gas protection within the pipeline, this conveyor system is meticulously designed for the secure transportation of flammable and explosive materials, adhering to the highest safety standards.
  3. Multiple Material Inlet and Outlet Points: The innovative design incorporates numerous material inlet and outlet points throughout the conveying process, significantly enhancing operational flexibility and efficiency.
  4. Exceptional Material Adaptability: Highly efficient at conveying powders and granules irrespective of moisture content, this system maintains the highest degree of material integrity, making it ideal for varied applications.
  5. Flexible Layout: With a compact and versatile structure, this conveyor system supports three-dimensional spatial routing and diverse layout options, perfectly tailored to meet a wide range of customer requirements.
  6. Extended Conveying Distances: Capable of managing single-way horizontal distances up to 60 meters and vertical heights up to 40 meters, this system ensures extensive reach and operational efficiency.


Product Features

  1. Enclosed and Environmentally Friendly: The completely enclosed design ensures zero dust or odor leakage. By eliminating metal friction, it significantly reduces noise pollution, ensuring a cleaner and quieter working environment.
  2. Safe and Reliable: With inert gas protection within the pipeline, this conveyor system is meticulously designed for the secure transportation of flammable and explosive materials, adhering to the highest safety standards.
  3. Multiple Material Inlet and Outlet Points: The innovative design incorporates numerous material inlet and outlet points throughout the conveying process, significantly enhancing operational flexibility and efficiency.
  4. Exceptional Material Adaptability: Highly efficient at conveying powders and granules irrespective of moisture content, this system maintains the highest degree of material integrity, making it ideal for varied applications.
  5. Flexible Layout: With a compact and versatile structure, this conveyor system supports three-dimensional spatial routing and diverse layout options, perfectly tailored to meet a wide range of customer requirements.
  6. Extended Conveying Distances: Capable of managing single-way horizontal distances up to 60 meters and vertical heights up to 40 meters, this system ensures extensive reach and operational efficiency.


Technical Parameters

Model

Motor Power(kW)

Linear Velocity(m/s)

Rotational Speed(r/min)

Conveying Capacity
(m3/h)

Maximum
Torque(N·m)

Maximum Tensile Force
(N)

PC-80

4.0

0.30

20.7

3.9

1810

1300

PC-80

4.0

0.40

24.9

4.7

1504

1090

PC-100

5.5

0.30

17.5

6.0

2943

1800

PC-100

5.5

0.40

23.4

7.0

2200

1350

PC-150

7.5

0.30

13.4

13.7

5240

2450

PC-150

7.5

0.40

17.9

18.2

3923

1840

PC-200

11.0

0.30

11.4

27.4

9034

3590

PC-200

11.0

0.40

15.2

36.5

6776

2700




Layout method


Application
